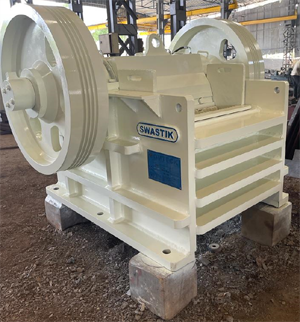

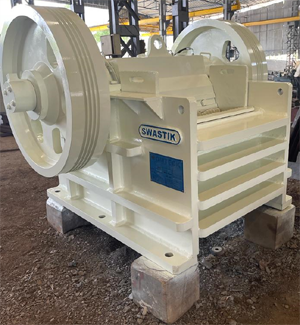

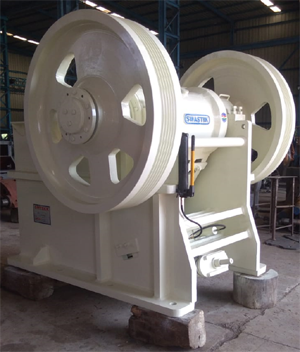

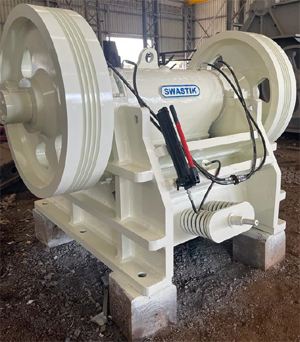

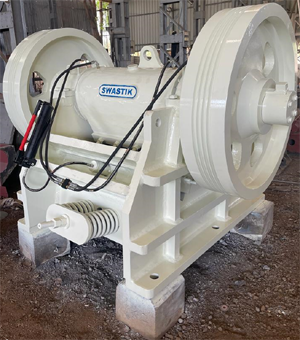

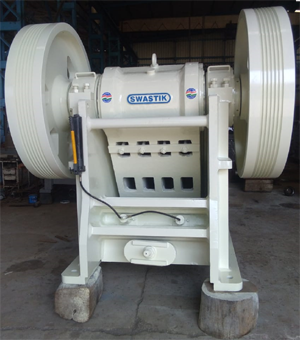

Jaw Crusher

Jaw Crusher is our main product, we sell it with our brand "OMTECK Jaw Crusher". We are considered to be the best Jaw Crusher manufacturer from Ahmedabad, Gujarat, India.
It comprises of following parts.

Fly Wheels

The crusher operates with a two light weight, dynamically balanced fly wheel, which also transmits power to main shaft.

Swing Jaw

The swing law is designed & fabricated with high compressive strength and it is annealed & stress relieved by heat treatment process and then it is precision machined for smooth crushing stroke.

Body

The body is made from tested MS Plates. It is fabricated with horizontal and vertical ribs for strength and sturdiness and the body is annealed & stress relieved by heat treatment process to reduce the chance of the body getting cracked swing jaw.

Toggles

Double toggle for even the smallest size crusher give better distribution of load well designed compression spring provide cushioning to the toggle mechanism eliminate knocks and reduce the resultant wear.

Hinge Pin

Sturdy hinge pin of EN-9 is located in correct relation to the crushing zone for crushing without rubbing.

Lubrication

Two positive gear pump continuous splashes lubrication automatically for the bearings, pitman and toggle mechanism. Enable the crusher to run safely at relatively higher speeds.

Diaphragm

Specially designed oil resistant flexible diaphragm, seals the opening in the oil chamber and protect the toggle mechanism against dust.

Discharge Gap Setting

In OMTECK Jaw Crusher, one more setting bolt is provided to set the gap at discharge end.

Power

Horse power required is based in use of electric motors in normal condition, petrol or diesel engine should be of approx. 20 to 25% higher capacities than electric motors and also subject to losses due to altitude.

Capacities

For achieving cubical product from the crusher, usage of serrated jaw plates is recommended, while using serrated jaw plates, capacity figures will get reduced.

Warranty

OMTECK Jaw Crushers are guaranteed for one year against any manufacturing defects. However, the guarantee does not cover brake downs under normal wear and tear or due to mistake made by operator.
